PMC - 500kW -1000kWh Mobile BESS Charger
- Product Name
- PMC - 500kW -1000kWh Mobile BESS Charger
- Category
- EV Charger
High-Capacity Mobile BESS Charging System
The PMC mobile BESS charger integrates large battery storage with DC fast charging in a containerized platform for ports, mining sites, construction zones, logistics hubs, and heavy-duty outdoor charging applications.
The system is suitable for projects that require rapid deployment, energy buffering, peak-load management, and reliable high-power charging without waiting for full permanent grid upgrades.
Specification
Design Standards

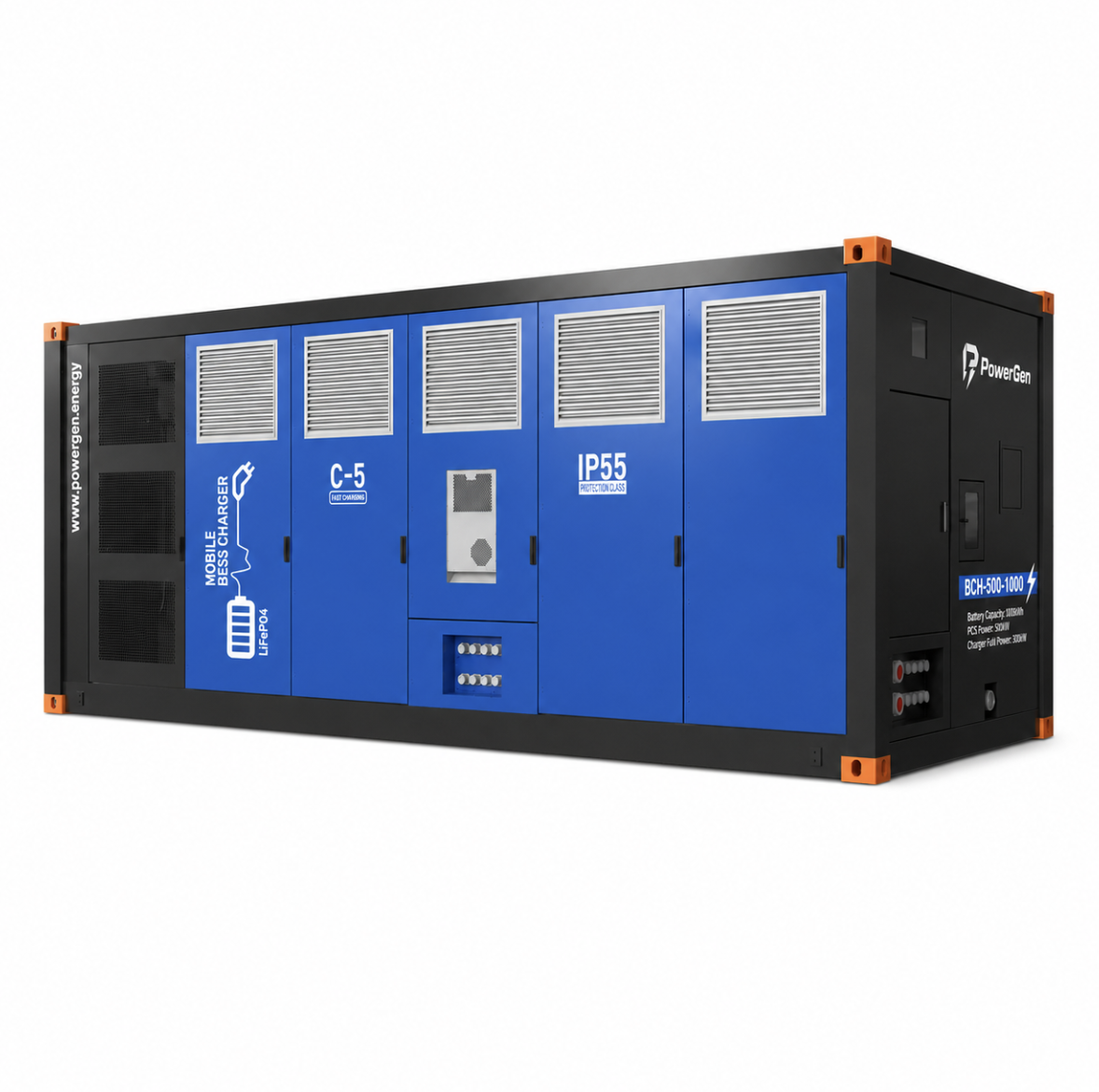

The BCH-500kW-1000kWh integrates a 1075kWh LFP battery storage system with a 500kW DC fast charger in a single 20' GP container, enabling rapid deployment at any site. The system accepts AC grid input up to 500kW (380-415Vac) and delivers DC output at up to 1000V via dual CCS-2 charging guns. Engineered to meet C-5 heavy-duty anti-corrosion standards, the BCH is purpose-built for demanding outdoor environments including ports, mining sites, construction zones, and logistics hubs.
Certification
Specification
| General Information | AC Side | DC Side |
|---|---|---|
| Rated Output Power@25°C | 500kVA | 500kW |
| Rated Output Voltage | 380V@50/60Hz,3ph.4W (400V & 415V available) | DC 50V~1000V |
| Rated Battery Storage Capacity | 1075 kWh | |
| Output - Terminals | N/A | CCS-2 350A Gun * 2 sets |
| Output - Sockets | 800A 5P PowerLock*1 set; CEE 125A/5P*1 set; CEE 63A/5P*1 set; CEE 32A/5P*1 set; CEE 16A/3P*3 sets | N/A |
| Input - Sockets | 800A 5P PowerLock*1 set for AC Power; 630A 5P PowerLock*1 set for SOLAR | CCS-2 400A*1 set |
| Protection Class | IP54 | |
| Loading Dimension(W*D*H) | 20'GP | |
| Net.Weight | 19800 kg | |
| Loading Capacity | 1 units@20'GP | |
| Discharge Temperature Range | -20~50°C (> 45 °C derating) | |
| Max Altitude | 3000m(> 2000m derating) | |
| Certificate | IEC 61000, IEC 62477, UN38.3 | |
