PHSC Hybrid Power 10-60kw

Product Name: PHSC Hybrid Power 10-60kw
Category: Hybrid Power

INQUIRE NOW

PHSC Hybrid Power for Solar, Battery, Grid, and Generator Integration

PHSC Hybrid Power 10-60kW integrates solar power, battery storage, intelligent inverter control, and generator backup for practical off-grid and weak-grid applications.

The system is suitable for sites that need cleaner power, backup resilience, and flexible charging/discharging logic across solar, battery, load, and generator operation.

Hybrid Power Category Telecom & Remote Sites Off-Grid Microgrid Solutions Contact PowerGen

Specification

Design Standard

PHSC® is a new range of secure integrated hybrid power station. With GAS generator, solar power, battery storage and hybrid solar Inverter in one secure unit. PHSC® is mainly developed for residents

Power, Reduce the dependence on Main Power and decrease the consumption cost.

Certification

Features

Integrated installation, convenient storage and transportation;
High return on investment and quick return;
Simple operation and easy maintenance;
Power and Capacity can be expanded, meet different user needs;
Accept customer customization, suitable for various scenarios;

Battery Performance: 4000 cycles(80% DOD) or 2
years after manufacture;
Generator: 12 months after manufacture or 1500
hours running time;

Specification

General Specification	Details
System Rated Output Power	20kW / kVA
Rated Output Voltage	120/208V@50/60Hz,3p3W (According to customer requirements)
Min. Battery Storage Capacity	10 kWh
Max. Battery Storage Capacity	20 kWh
Max. Solar Power	2300W

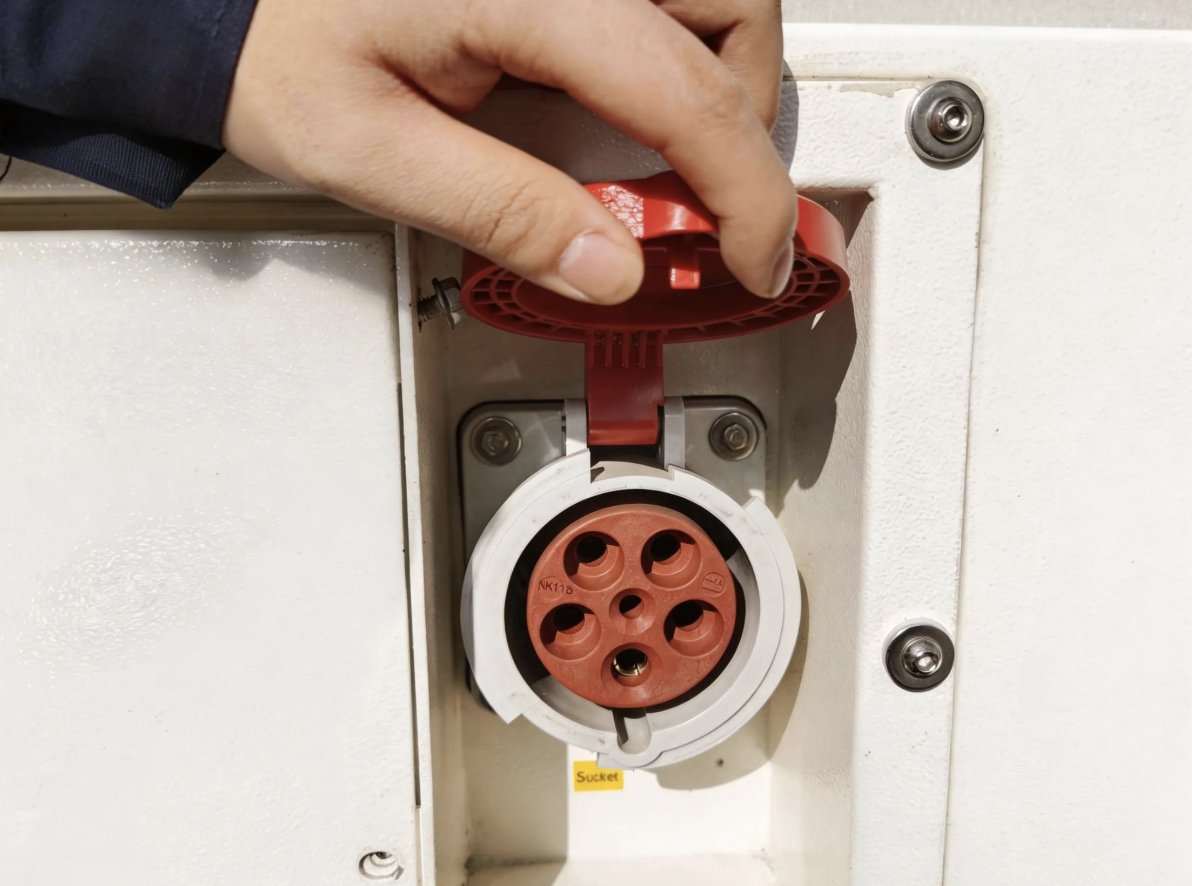

Output Terminals	Copper terminals & CEE 32A/5P Socket
Expand Dimension(WDH)	295055003350mm
Loading Dimension(WDH)	295011502250mm
Net. Weight	2900kg
Loading Capacity (20'GP)	4 units
Loading Capacity (40'HC)	8 units
Discharge Temperature Range	-20°C~50°C

Product Details

PHSC Hybrid Power 10-60kw product details image 5 - hybrid power system with solar, battery storage and generator backup

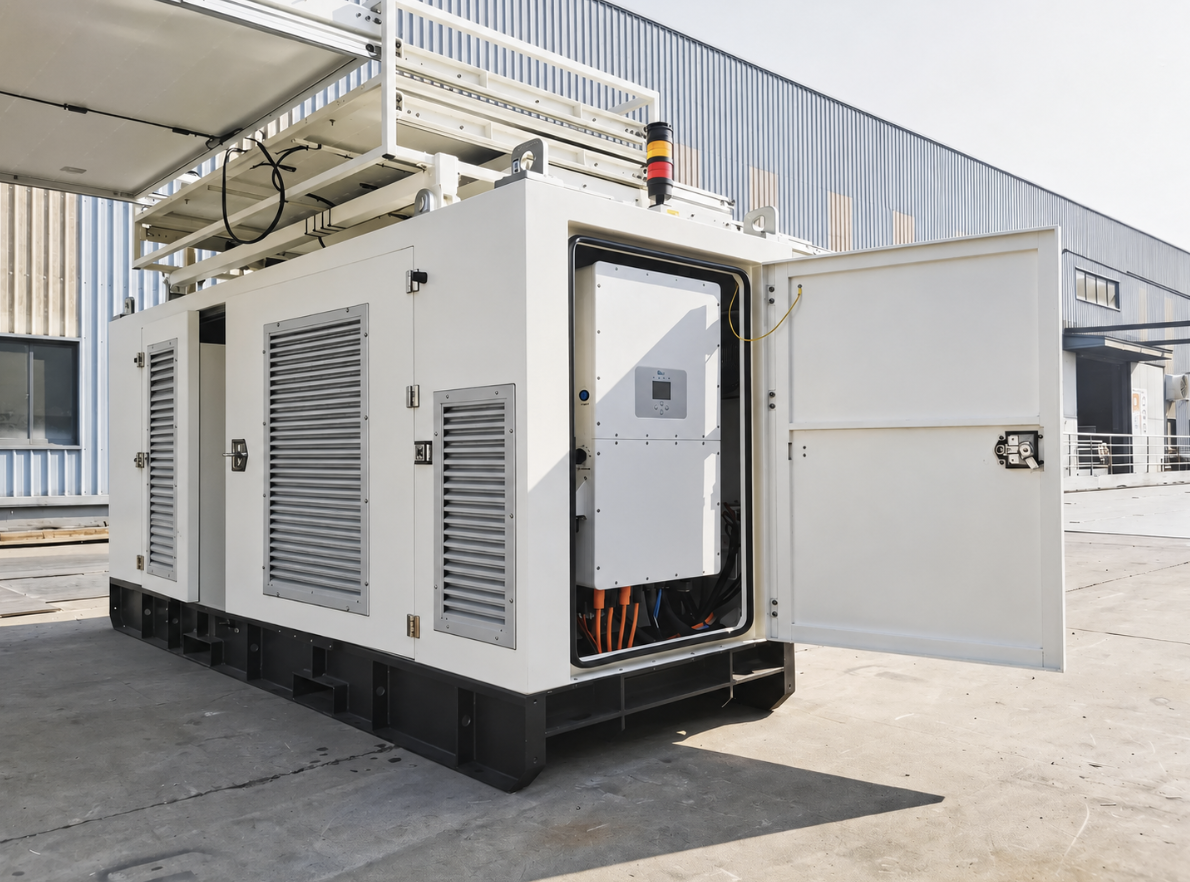

PHSC Hybrid Power 10-60kw product details image 6 - hybrid power system with solar, battery storage and generator backup

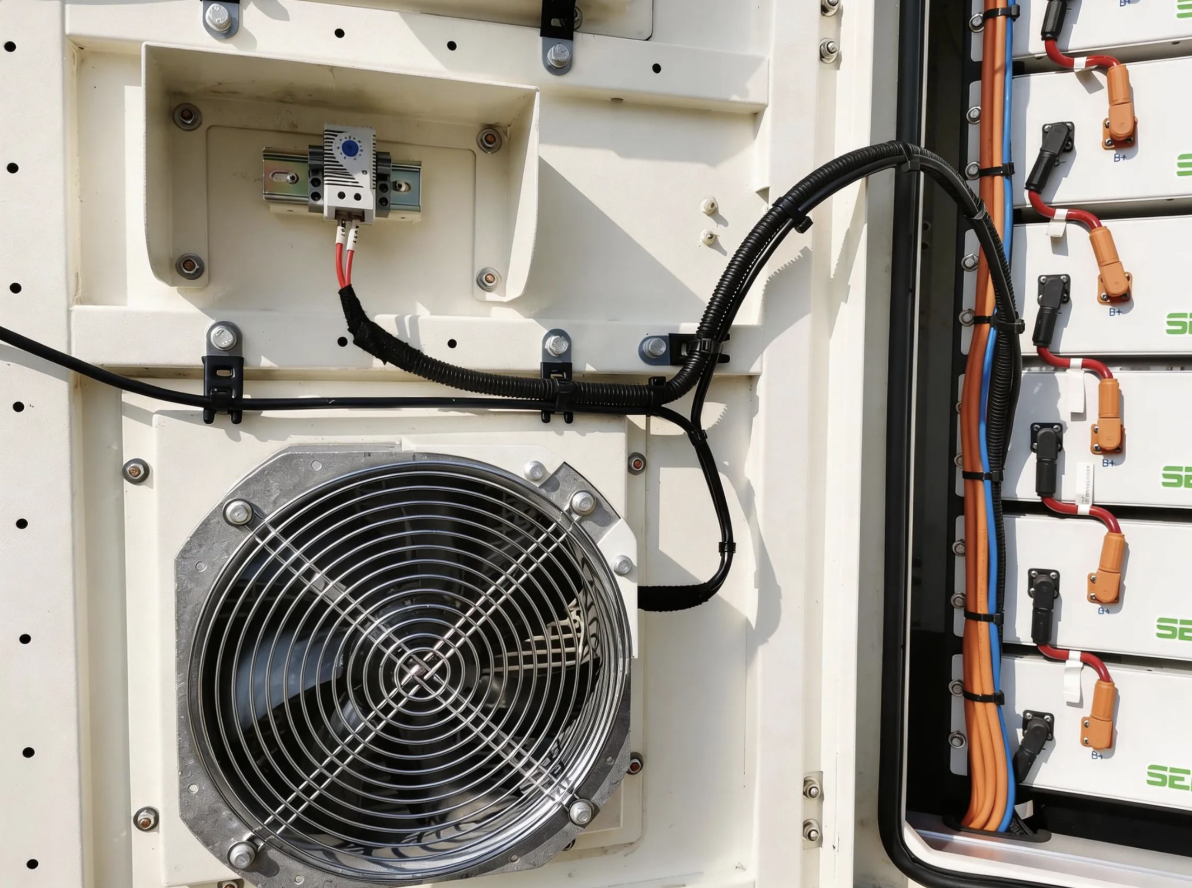

PHSC Hybrid Power 10-60kw product details image 7 - hybrid power system with solar, battery storage and generator backup

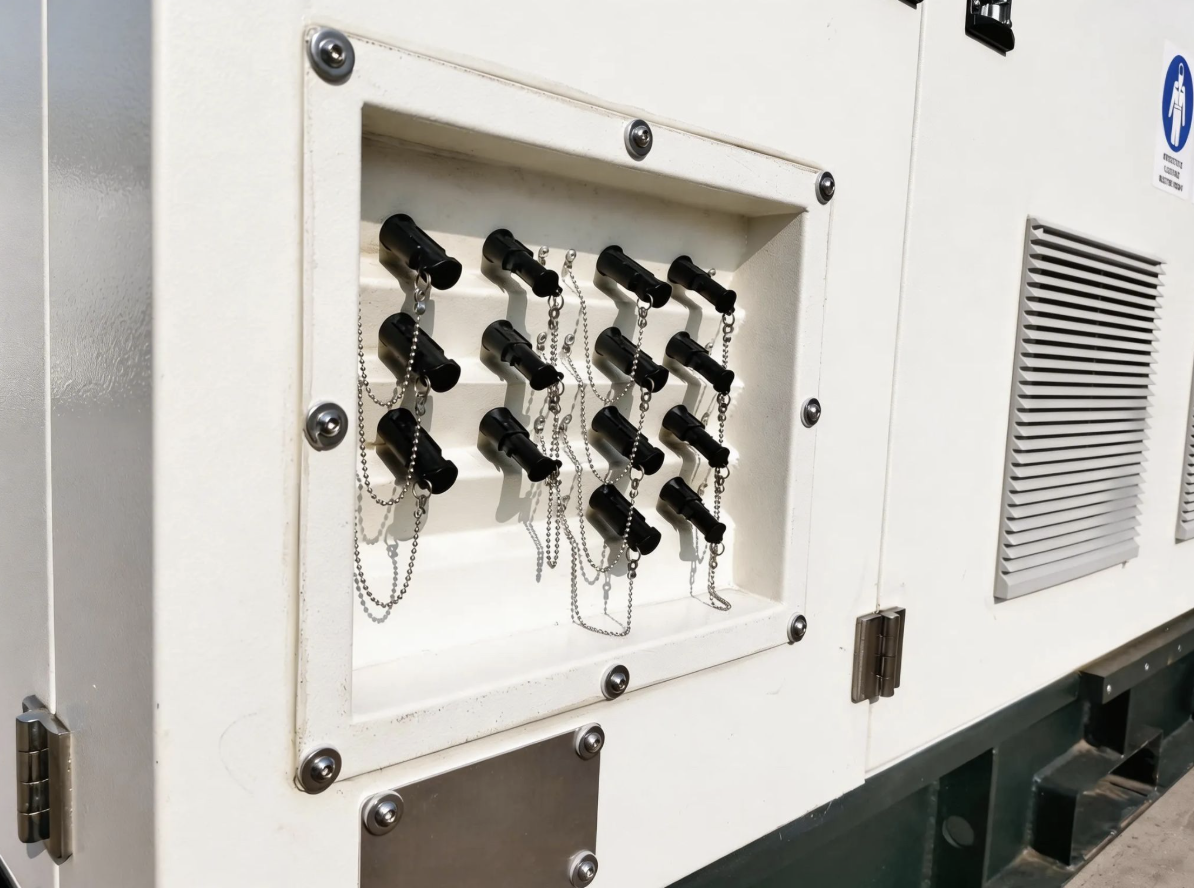

PHSC Hybrid Power 10-60kw product details image 8 - hybrid power system with solar, battery storage and generator backup

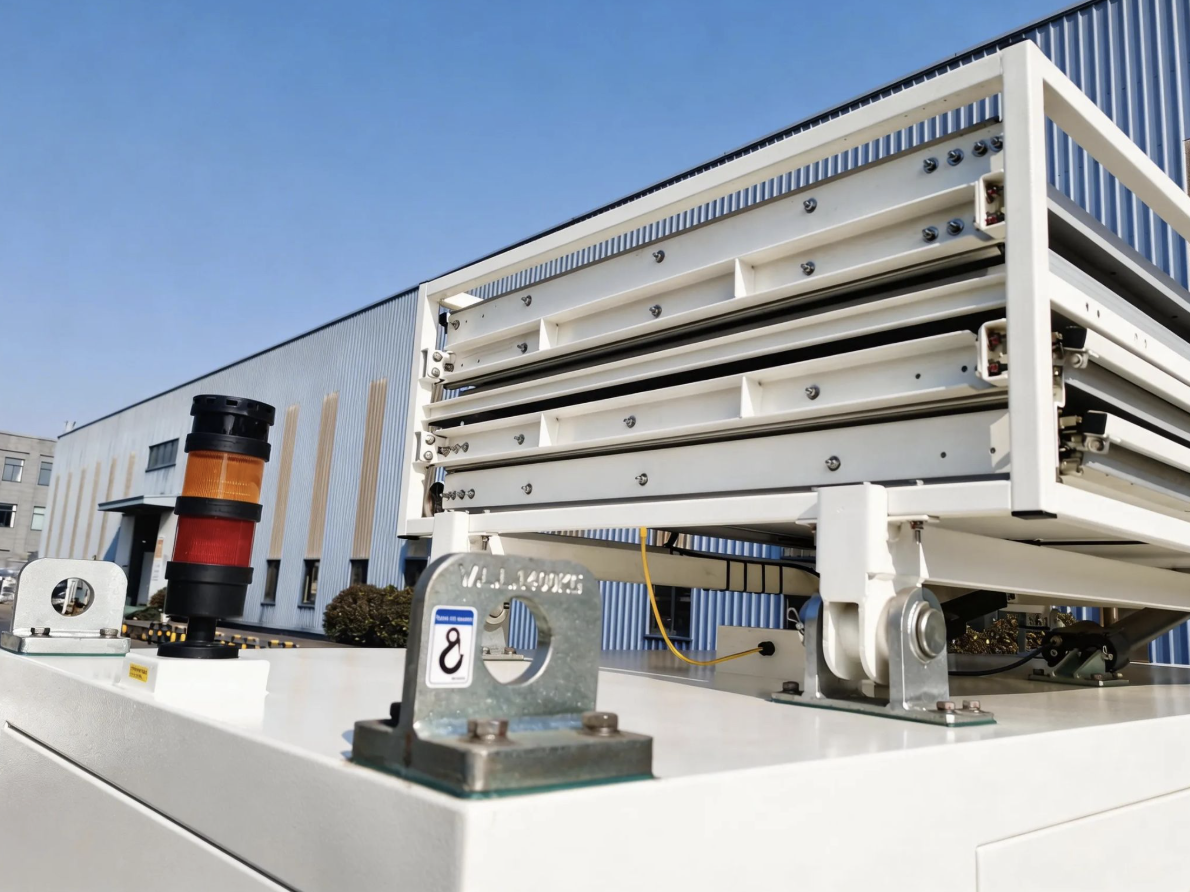

PHSC Hybrid Power 10-60kw product details image 9 - hybrid power system with solar, battery storage and generator backup

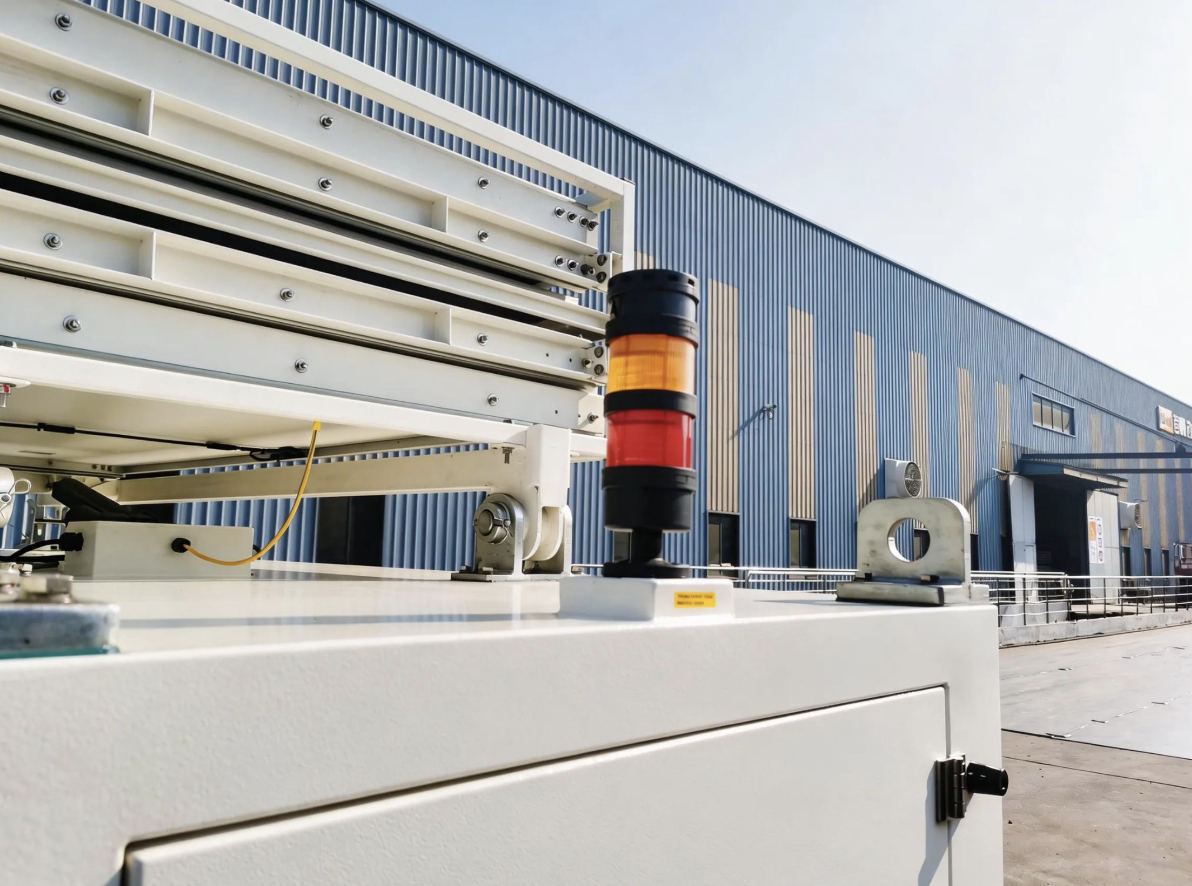

PHSC Hybrid Power 10-60kw product details image 10 - hybrid power system with solar, battery storage and generator backup

Typical Application

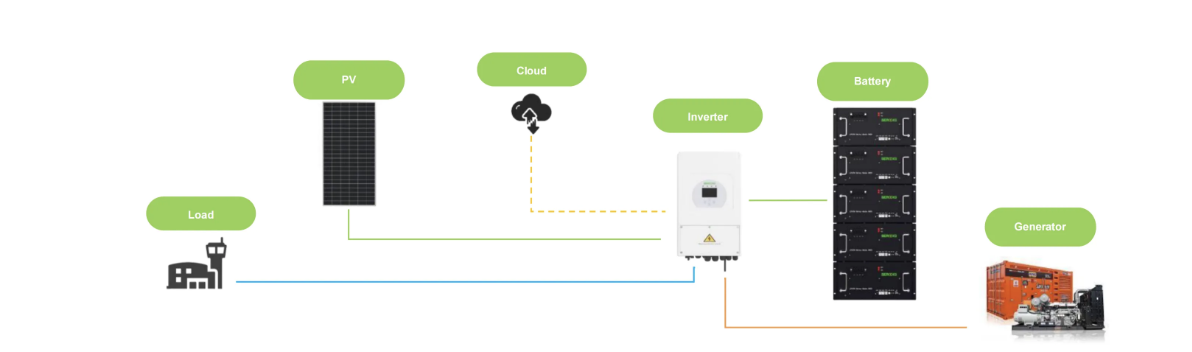

Technical Specification

Generator Set
Prime Power	12kVA/10kW
Engine to Ref.	Power Gen
Type of fuel	LPG & NG
Solar Panel
Maximum Power	460W
Qty.	5pcs
Energy Storage Battery
Cell Type	LFP (LiFePO4)
Pack Model	MF51100
Pack Capacity	5.12 kWh
Rated Cycle Life	≥4000 (80% DOD)
Hybrid Inverter System
Solar Controller	MPPT*4
AC Voltage Range	120/208Vac 50/60HZ
Rated Output Power	20kVA (0.8 leading~0.8lagging)
